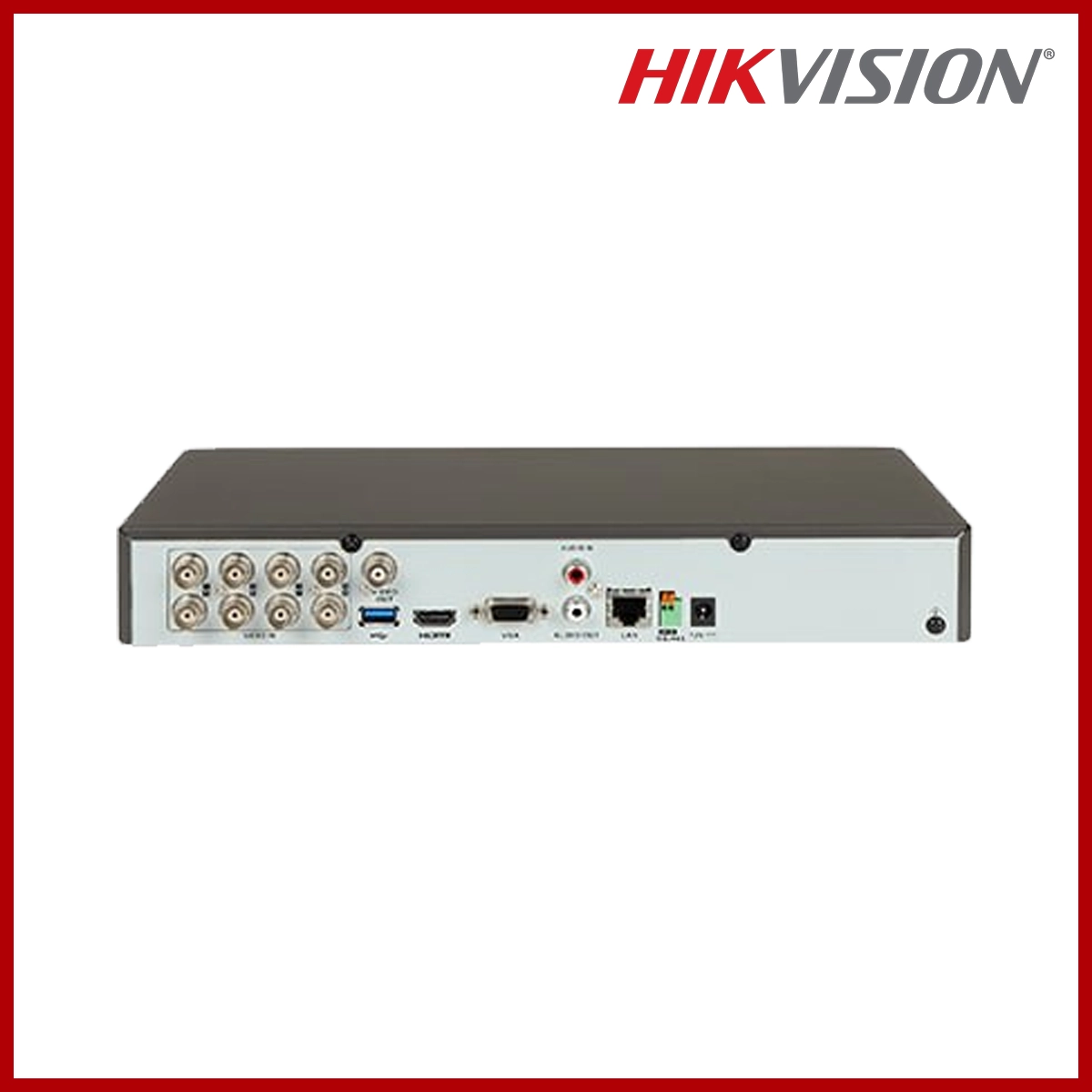

The Hikvision iDS-7208HUHI-M1/E(C) digital video recorder supports 8 analog BNC channels and up to 8 additional IP camera inputs (16 channels total in enhanced IP mode). It handles up to 8 MP analog resolution, features 1 independent RCA audio input, and supports 8-channel audio over coaxial cables.
Video Inputs
- Analog Video Input: 8 channels via BNC interface (1.0 Vp-p, 75 Ω), supporting Coaxitron and self-adaptive HDTVI, AHD, HDCVI, and CVBS signals.
- HDTVI Input Resolutions:
- 8 MP @ 15 fps / 12 fps
- 3K @ 20 fps
- 5 MP @ 20 fps / 12 fps
- 4 MP @ 25 fps / 30 fps
- 3 MP @ 18 fps
- 1080p and 720p @ 25 fps / 30 fps
- IP Video Input:
- Standard mode: 4 channels (up to 12 channels), supporting up to 8 MP resolution.
- Enhanced IP mode enabled: 8 channels (up to 16 channels), each up to 4 Mbps.
- Supports H.265+/H.265/H.264+/H.264 IP cameras.
Audio Inputs
- Independent Audio Input: 1 channel via RCA connector (2.0 Vp-p, 1 KΩ).
- Coaxial Audio Input: 8 channels (audio transmitted over the coaxial BNC cable from compatible cameras).
- Two-Way Audio: 1 channel via RCA (2.0 Vp-p, 1 KΩ), sharing the primary audio input.
- Audio Compression: G.711u with a 64 Kbps bit rate.
