Mikrotik L009UiGS-RM

The MikroTik L009UiGS-RM is a fast, rackmountable gigabit router designed as a powerful upgrade to the older RB2011 series. It features a dual-core ARM CPU, 512 MB of RAM, eight gigabit Ethernet ports, a 2.5G-capable SFP port, a USB 3.0 port, and runs RouterOS v7 (Level 5 license).

Key Specifications

CPU: Dual-core IPQ-5018 at 800 MHz (ARM 32bit)

Memory & Storage: 512 MB RAM, 128 MB NAND storage

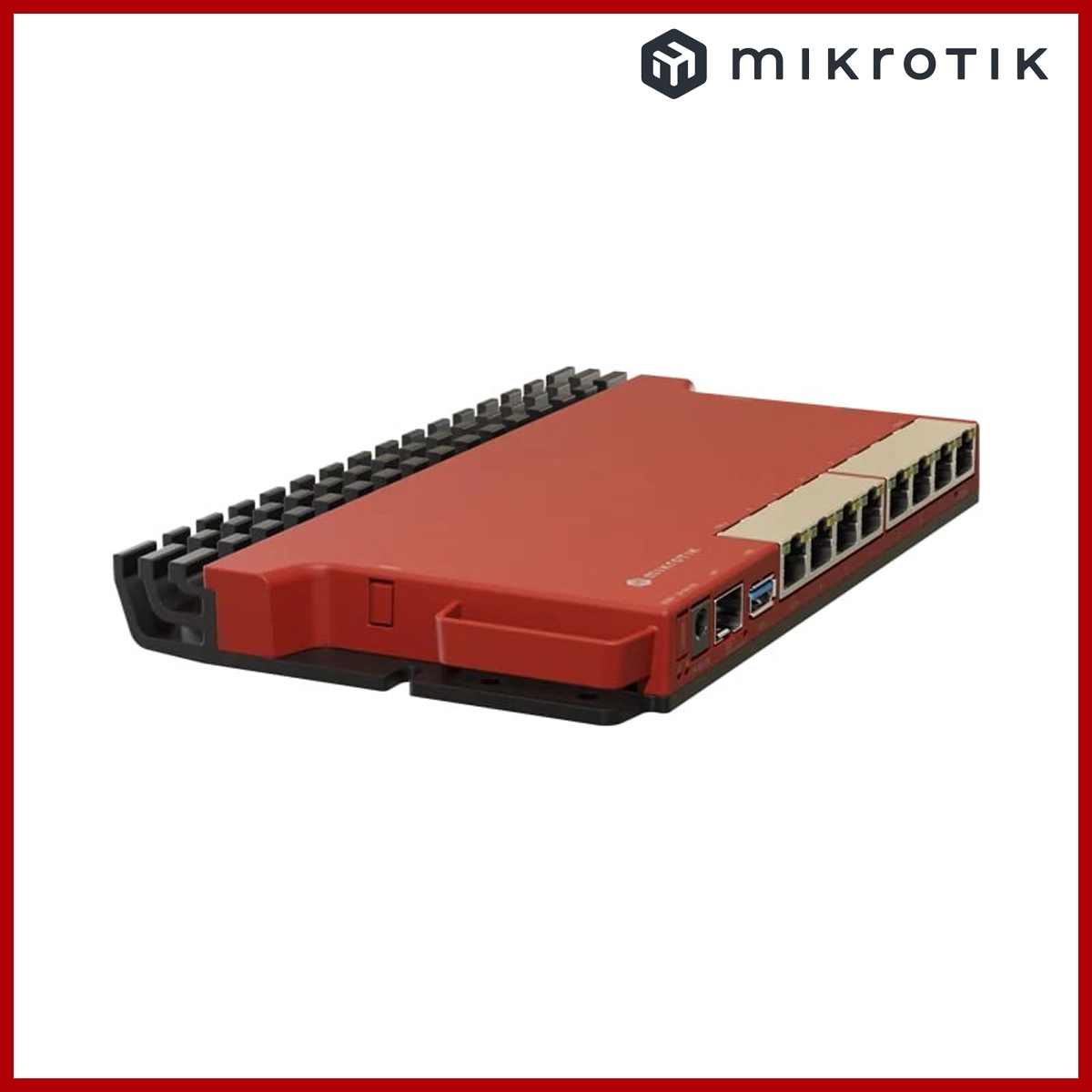

Network Ports: 8x 10/100/1000 Mbps Ethernet ports

SFP Support: 1x SFP cage supporting 1.25G and 2.5G speeds

Power Options: PoE-in (Ethernet port 1 or 2-pin terminal or DC jack, 24-56 V DC), PoE-out (Passive PoE on port 8, via DC jack)

Extras: USB 3.0 port and an RJ45 serial console port

Physical Design & Features

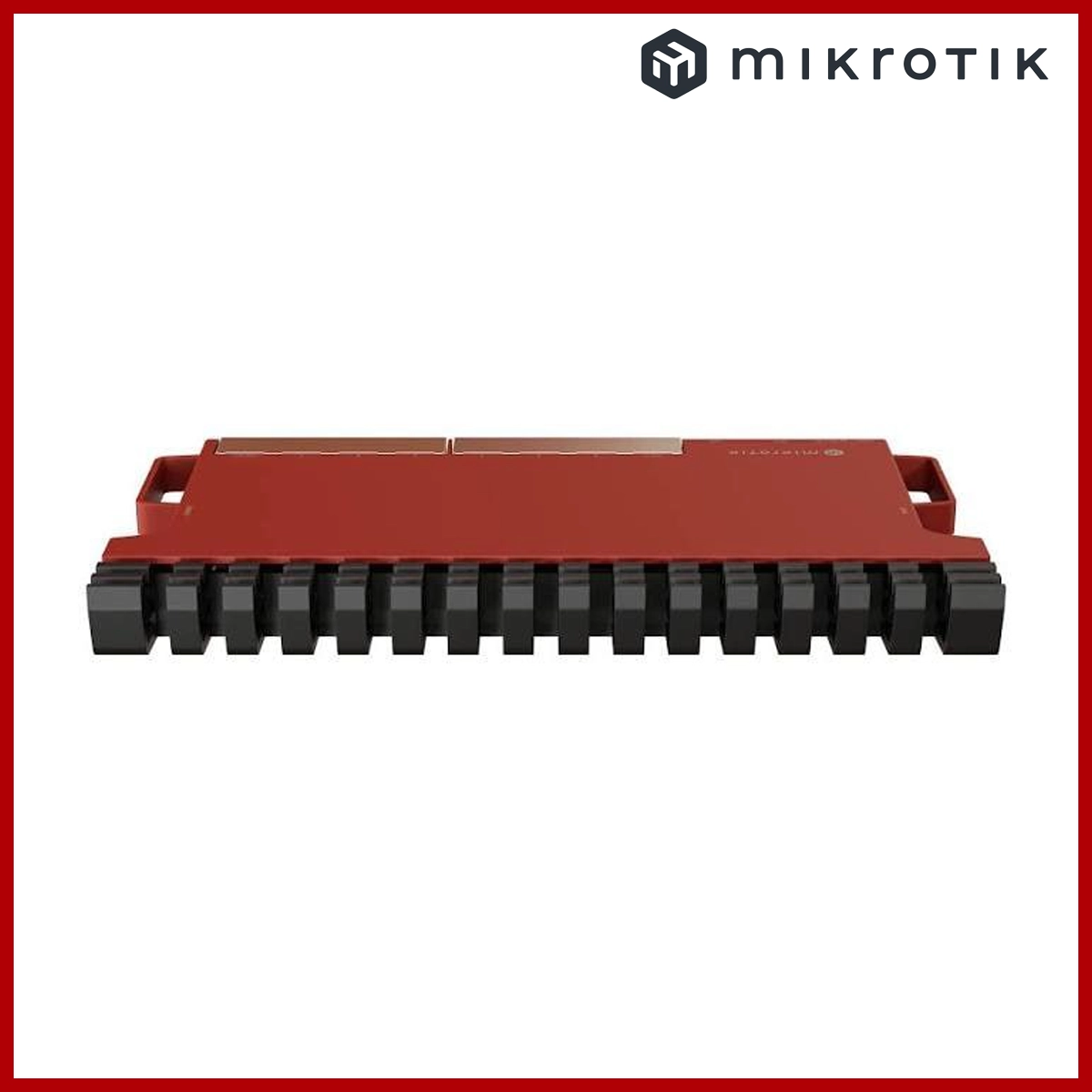

Enclosure: Functions as a massive heat sink to keep the unit cool passively.

Rackmount Compatibility: Ships with a rackmount kit designed to fit up to four L009 units into a single 1U rack space.

Performance: Offers roughly 4 times faster routing performance than the classic RB2011 and supports lightweight container/Docker projects.
