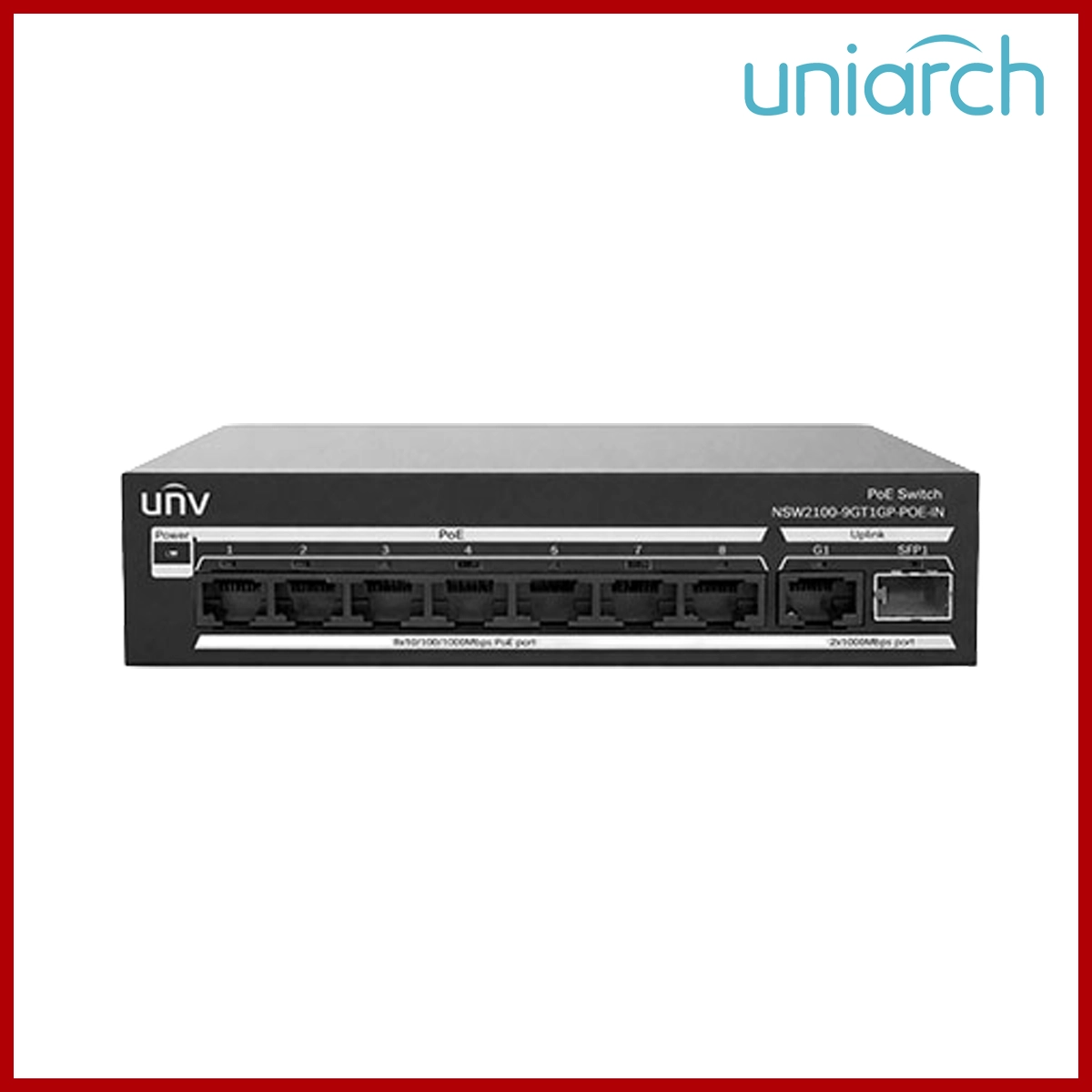

UNV 8 Port Gigabit Unmanaged POE Switch NSW2100-9GT1GP-POE-IN

Brand Uniview

0 /5.0 (0 reviews)

SKU 80001927

Pricing

$68.00 /Pc(s)

5 available

Minimum order qty 1

QTY

Inhouse product

Message Seller

Brand Uniview

Products from this brand

Free Shipping

The UNV NSW2100-9GT1GP-POE-IN is an 8-Port Gigabit PoE Switch designed primarily for IP surveillance setups and small office networks. Note that while it is often grouped with unmanaged devices due to its easy deployment, it is technically classified as a Lite Cloud Managed Switch. This gives you the plug-and-play simplicity of an unmanaged switch with the added benefit of basic web/app monitoring and cloud management.

Key Technical Specifications

Port Layout: Equipped with 8× 10/100/1000 Mbps PoE ports (RJ45), 1× dedicated Gigabit RJ45 uplink port, and 1× Gigabit SFP uplink port for fiber connectivity.
Power Budget: Delivers a total PoE budget of 120W. It supports IEEE 802.3af/at standards with a maximum output of 30W per port.
Performance: Provides a 20 Gbps switching capacity and a 14.88 Mpps packet forwarding rate to ensure smooth, lag-free data flow.
Physical Design: Built with a fanless, durable all-metal casing for silent operation and a longer hardware lifespan.

Surveillance-Optimized Features

Extend Mode (Long-Range PoE): Supports long-distance transmission up to 250 meters (820 feet) at a downgraded 10 Mbps speed, which is ideal for far-reaching outdoor IP cameras.
Port Priority: Prioritizes ports 1 and 2 to ensure mission-critical cameras stay fully powered even if the overall network power budget peaks.
Lite Cloud Management: By scanning a simple QR code, you can view real-time device status on the mobile app and remotely restart the PoE power supply to reboot a frozen camera without driving to the site.
Layer 2 Networking: Features fundamental adjustments including VLAN configurations, port isolation, and port mirroring via a web login interface
