Huananzhi Mainboard (MB) Prime H510-D4 10th and 11th Gen Ddr4 32GB

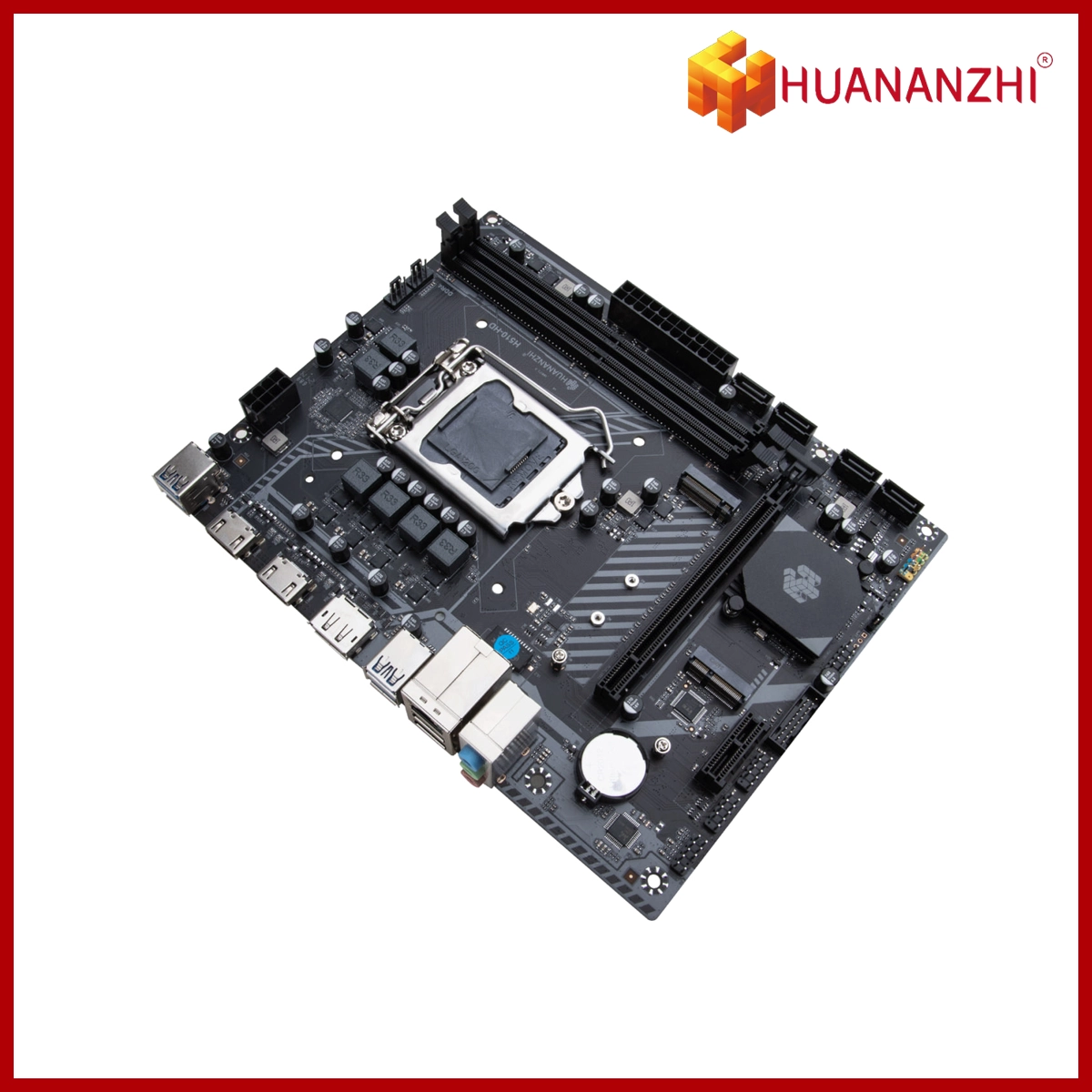

The Huananzhi H510-D4 is a budget Micro-ATX motherboard built on the Intel H510 chipset. It features an LGA1200 socket supporting Intel 10th and 11th Gen processors, two DDR4 DIMM slots handling up to 64GB of RAM (native speeds up to 2933MHz), and an M.2 NVMe storage slot.

Key Technical Specifications

CPU Socket: Intel LGA1200 (10th and 11th Generation Core, Pentium, and Celeron)

Chipset: Intel H510

Memory Slots: 2 x DDR4 DIMM (Dual-Channel, max capacity 64GB, speeds up to 2933/2666/2400MHz with XMP support)

Expansion Slots: 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1

Storage Interfaces: 1 x M.2 2280 NVMe (PCIe 3.0 x4), 4 x SATA 3.0 (6Gb/s)

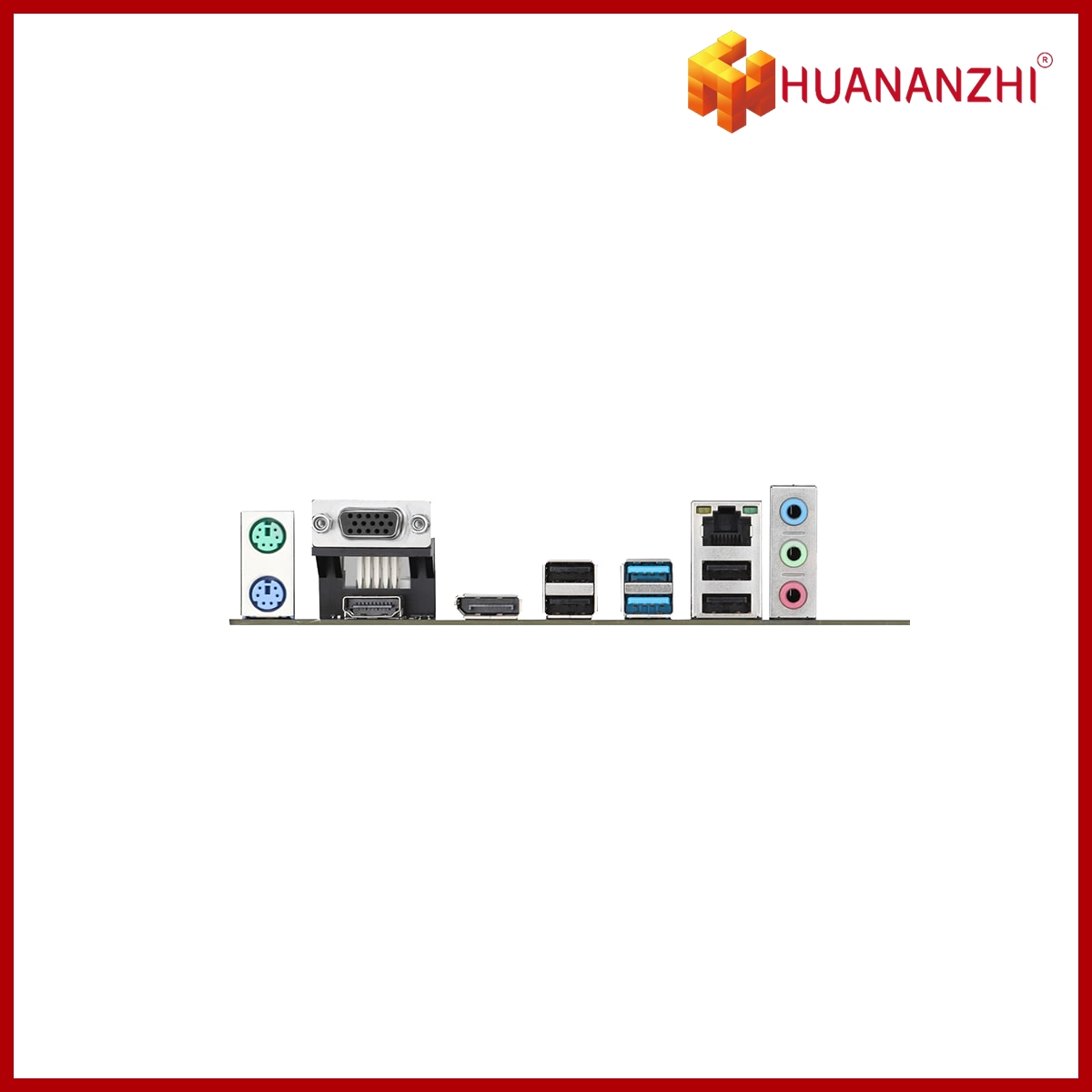

Display Outputs: 1 x HDMI, 1 x DisplayPort (DP), 1 x VGA

USB Ports: 2 x USB 3.0, 4 x USB 2.0 (Rear panel)

Form Factor: Micro-ATX (220 mm x 180 mm)

System Build Recommendations

RAM Usage: While the board supports up to 64GB, installing a single or dual-kit 32GB DDR4 configuration will run smoothly in dual-channel mode. Keep in mind that memory speeds will default according to your specific 10th or 11th Gen CPU limitations (typically 2933MHz max on this chipset tier).

OS Support: Fully compatible with Windows 10 and Windows 11. Make sure to download the latest chipset, audio, and LAN drivers directly from the Huananzhi Official Website or use stable platform drivers during setup.
