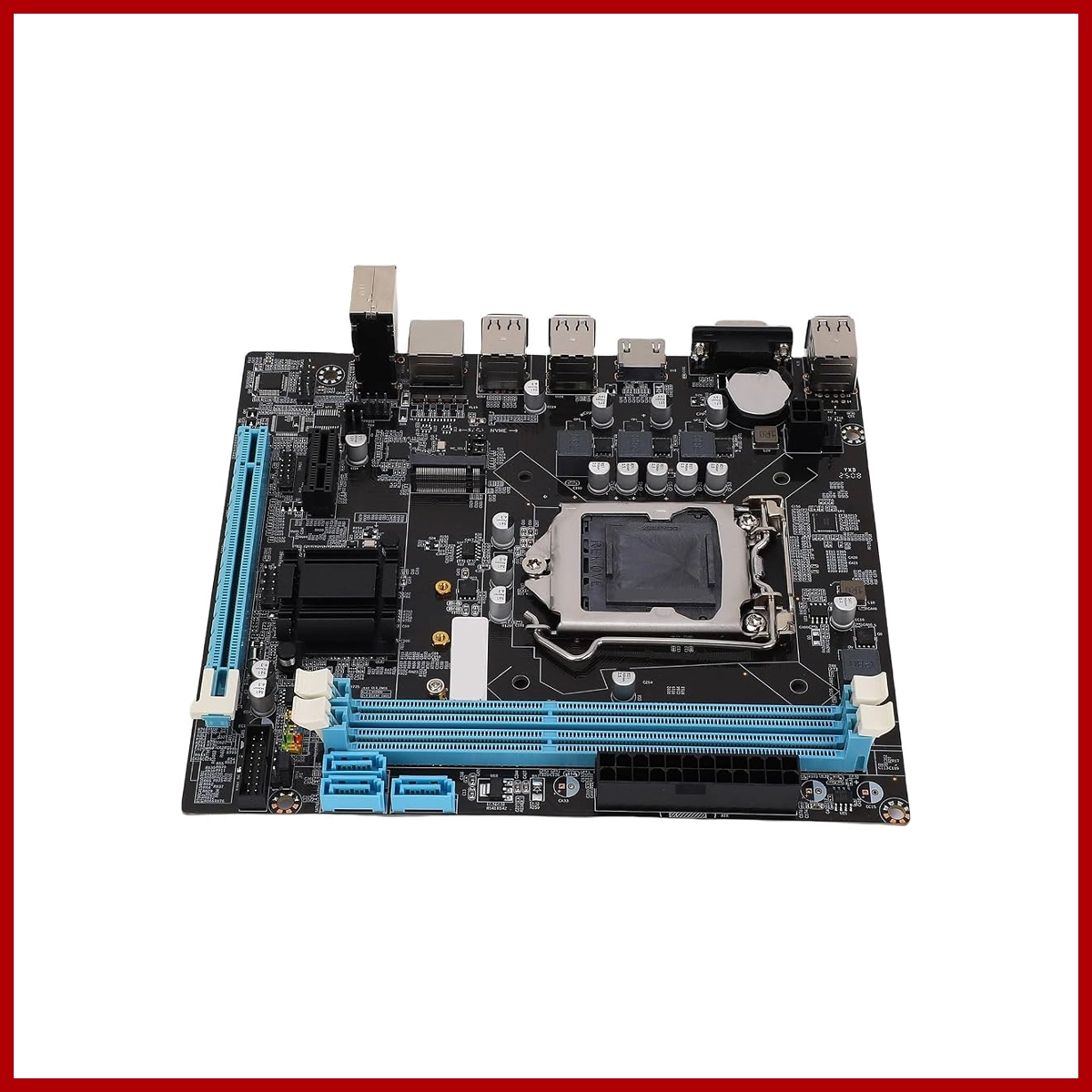

The specifications you provided describe a compact Micro-ATX (M-ATX) OEM Motherboard utilizing the Intel H61 chipset. This motherboard type is commonly manufactured by white-label brands like Jingsha via Newegg, Machinist, or HUANANZHI to serve as budget-friendly replacements for legacy desktop setups.
? Full Technical Specifications
- Chipset: Intel H61 Express.
- CPU Socket: LGA 1155.
- Processor Support: Intel 2nd Generation (Sandy Bridge) and 3rd Generation (Ivy Bridge) Core i7, i5, i3, Pentium, and Celeron processors.
- Form Factor: Micro-ATX (M-ATX) measuring exactly 190mm × 170mm (ultra-compact layout).
- System Memory: 2 × DDR3 DIMM slots.
- Maximum Capacity: 16GB (supports 2 × 8GB modules).
- Memory Speed: Native 1333MHz (can scale to 1600MHz when paired with a 3rd Gen Ivy Bridge CPU).
- Expansion Slots:
- 1 × PCI Express x16 slot (runs at Gen 2.0 or Gen 3.0 depending on the installed processor).
- 1 × PCI Express x1 slot (for Wi-Fi cards or expansion cards).
- Storage Interfaces: 4 × SATA II (3Gb/s) ports. Note: OEM versions often add a single M.2 NVMe PCIe 2.0 x4 slot for modern SSD flexibility.
- Rear I/O Connectivity:
- 4 to 6 × USB 2.0 ports.
- 1 × HDMI port.
- 1 × VGA (D-Sub) port.
- 1 × RJ-45 Ethernet port (typically 10/100 Mbps).
- 3 × Audio Jacks (Line-in, Line-out, Microphone).
- Power Delivery: Standard 24-pin ATX main power connector + 4-pin 12V CPU power connector.
