OEM Mainboard (MB) H110/H311M-G with M.2 6th-9th GEN DDR4 Up to 2666Mhz

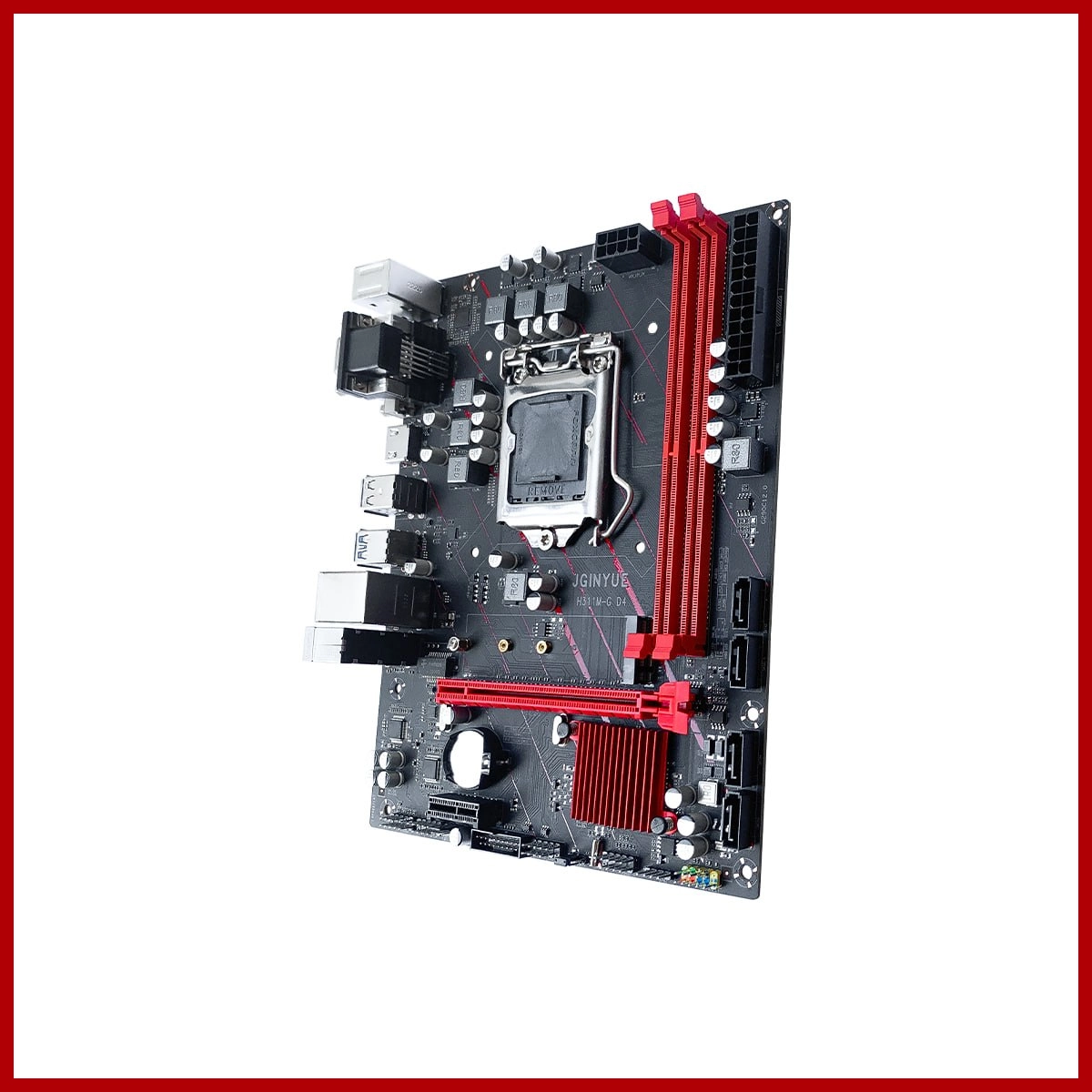

An OEM hybrid/modified budget motherboard (such as the JGINYUE H311M-G D4 or Trendsonic TS-H311M-G) uses an entry-level chipset modified with an LGA1151 socket to bridge multiple CPU generations. It allows older 6th/7th gen and newer 8th/9th gen Intel processors to run on a single affordable board.

Main Specifications

CPU Socket: LGA1151 (Supports Intel 6th, 7th, 8th, and 9th Generation Core, Pentium, and Celeron processors).

Memory Slots: 2 x DDR4 Dual-Channel slots supporting up to 32GB or 64GB total capacity (speeds up to 2666MHz depending on the specific CPU limitation).

Storage Options: 1 x M.2 slot (supporting NVMe and NGFF/SATA protocols, often switchable via jumper/BIOS) plus 3 to 4 x SATA 3.0 ports (6Gbps).

Expansion Slots: 1 x PCI-E 3.0 x16 (for a dedicated graphics card) and 1 x PCI-E x1 slot.

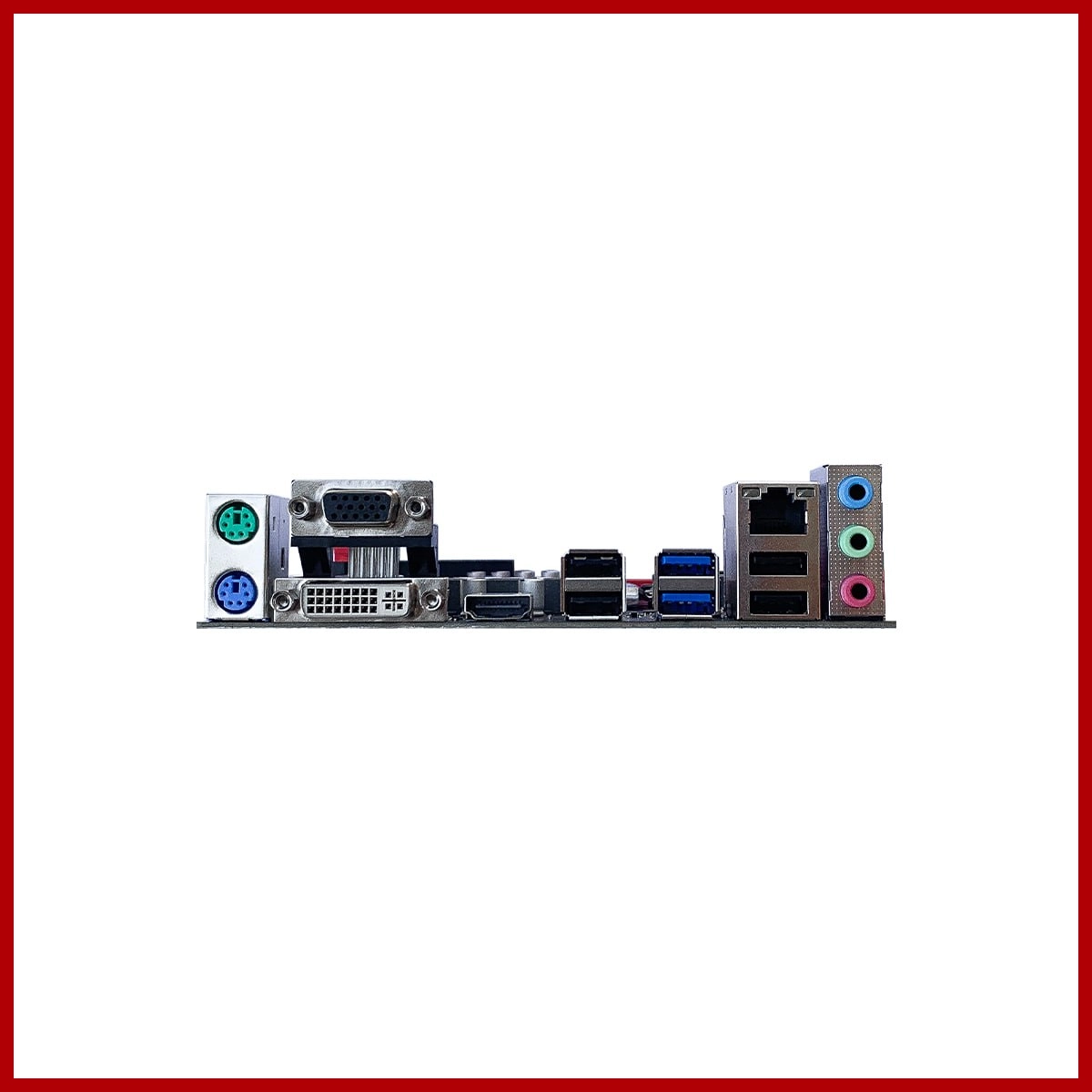

Display Outputs: HDMI, VGA, and DVI ports (reliant on CPU integrated graphics).

Networking & Audio: Realtek RTL8111H Gigabit LAN and 6-channel High Definition Audio.

Form Factor: Micro-ATX (mATX), roughly 21.5 cm x 17 cm.
